What is the maximum operating pressure of a 3 Way Gas Valve?
As a supplier of 3 Way Gas Valves, I often receive inquiries from customers about the maximum operating pressure of these valves. Understanding this parameter is crucial for ensuring the safe and efficient operation of gas systems in various applications, including industrial processes, laboratory settings, and heating systems.
Understanding the Basics of 3 Way Gas Valves
A 3 Way Gas Valve is a type of valve that has three ports, allowing it to control the flow of gas in different directions. These valves can be used to divert the flow of gas between two different paths, mix two different gases, or perform other functions depending on the specific design and application. The operation of a 3 Way Gas Valve is typically controlled by an actuator, which can be manual, electric, pneumatic, or hydraulic.
Factors Affecting the Maximum Operating Pressure
The maximum operating pressure of a 3 Way Gas Valve is determined by several factors, including the valve's design, materials of construction, and the type of gas being used. Here are some of the key factors to consider:
- Valve Design: The design of the valve plays a significant role in determining its maximum operating pressure. Valves with a more robust design, such as those with thicker walls and stronger seals, are generally able to withstand higher pressures. Additionally, the type of valve action (e.g., ball valve, butterfly valve, or globe valve) can also affect the maximum operating pressure.
- Materials of Construction: The materials used to construct the valve also have a major impact on its maximum operating pressure. Valves made from high-strength materials, such as stainless steel or brass, are typically able to withstand higher pressures than those made from weaker materials, such as plastic. The choice of materials also depends on the type of gas being used, as some gases may be corrosive or reactive with certain materials.
- Gas Type: Different gases have different properties, such as density, viscosity, and compressibility, which can affect the maximum operating pressure of a 3 Way Gas Valve. For example, gases with a high density or viscosity may require a valve with a larger port size to ensure proper flow, while gases with a high compressibility may require a valve with a stronger seal to prevent leakage.
Typical Maximum Operating Pressures
The maximum operating pressure of a 3 Way Gas Valve can vary widely depending on the factors mentioned above. In general, however, most 3 Way Gas Valves are designed to operate at pressures ranging from a few psi (pounds per square inch) to several hundred psi. For example, in laboratory applications, where the gas flow rates are typically low, 3 Way Gas Valves may be designed to operate at pressures of up to 100 psi. In industrial applications, where the gas flow rates and pressures are typically higher, 3 Way Gas Valves may be designed to operate at pressures of up to 500 psi or more.
It's important to note that the maximum operating pressure of a 3 Way Gas Valve is not the same as the maximum pressure that the valve can withstand without failing. The maximum operating pressure is the pressure at which the valve is designed to operate safely and efficiently over an extended period of time. Exceeding the maximum operating pressure can cause the valve to malfunction, leak, or even fail catastrophically, which can pose a serious safety hazard.
Importance of Choosing the Right Valve for the Application
Choosing the right 3 Way Gas Valve for your application is crucial for ensuring the safe and efficient operation of your gas system. When selecting a valve, it's important to consider the following factors:
- Maximum Operating Pressure: As discussed above, the maximum operating pressure of the valve must be compatible with the pressure requirements of your application. Make sure to choose a valve with a maximum operating pressure that is higher than the maximum pressure that the valve will be exposed to in your system.
- Flow Rate: The flow rate of the gas through the valve is also an important consideration. Make sure to choose a valve with a port size that is large enough to accommodate the required flow rate without causing excessive pressure drop.
- Gas Type: The type of gas being used in your system will also affect the choice of valve. Make sure to choose a valve that is compatible with the type of gas being used, as some gases may be corrosive or reactive with certain materials.
- Actuator Type: The type of actuator used to control the valve is also important. Make sure to choose an actuator that is compatible with the operating requirements of your system, such as the required response time and the level of automation.
Other Types of Gas Valves in Our Product Range
In addition to 3 Way Gas Valves, we also offer a wide range of other gas valves to meet the needs of our customers. Some of the other types of gas valves that we supply include:

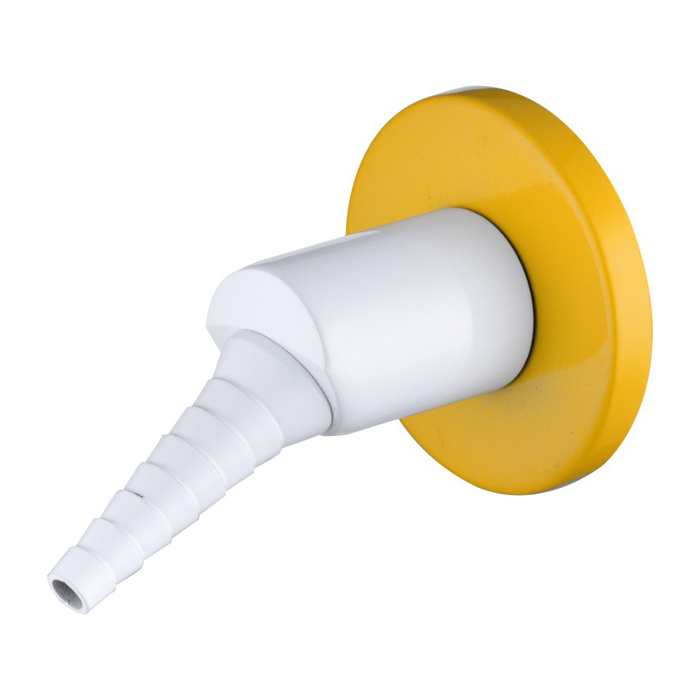

- Fume Cupboard Valve: These valves are designed specifically for use in fume cupboards, which are used to contain and exhaust hazardous fumes and gases. Fume Cupboard Valves are typically made from high-quality materials that are resistant to corrosion and chemical attack, and they are designed to provide a reliable and leak-free seal.
- Remote Gas Flux Control Valve: These valves are used to control the flow of gas remotely, allowing for greater flexibility and convenience in gas system operation. Remote Gas Flux Control Valves can be controlled by a variety of means, including manual switches, electronic controllers, or computer systems.
- One Way Gas Flow Valve: These valves are designed to allow gas to flow in only one direction, preventing backflow and ensuring the proper operation of gas systems. One Way Gas Flow Valves are typically used in applications where backflow could cause damage to equipment or pose a safety hazard.
Conclusion
In conclusion, the maximum operating pressure of a 3 Way Gas Valve is an important parameter that must be carefully considered when selecting a valve for your application. By understanding the factors that affect the maximum operating pressure and choosing the right valve for your needs, you can ensure the safe and efficient operation of your gas system. If you have any questions about 3 Way Gas Valves or any of our other gas valve products, please don't hesitate to contact us for more information. We look forward to working with you to meet your gas valve needs.
